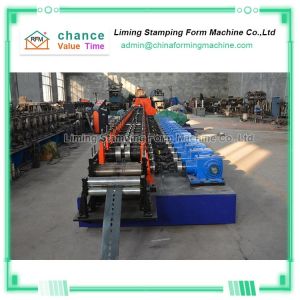

Stainless Steel Solar PV Bracket Roll Forming Machine
"Stainless steel solar PV Bracket Roll Forming Machine" " is composed of decoiler, straightening machine, servo feeder, punching machine, conveying rail, forming host and support frame.
"Stainless steel solar PV Bracket Roll Forming Machine" " can produce various cross-sections and different specifications of stent profiles by switching.
The finished product of "Stainless steel solar PV Bracket Roll Forming Machine" " has good flatness.
"Stainless steel solar PV Bracket Roll Forming Machine" " has a high degree of automation, high speed, production line speed: 10 meters per minute.
The finished product produced by the "Stainless steel solar PV Bracket Roll Forming Machine" " is a special bracket used to place, install and fix solar panels in a solar photovoltaic power generation system.
The finished products produced by the "Stainless steel solar PV Bracket Roll Forming Machine" " are usually made of aluminum alloy, carbon steel and stainless steel.
Technical parameters of Stainless Steel Solar PV Bracket Roll Forming Machine
| tem | Parameters |
| | According to your requirements |
| Model | Type | PPGI, GI, CR , Steel Coil |
| | Thickness(mm) | 1.0-3.0 mm |
| | Yield strength(Mpa) | 345 |
| Forming speed(m/min) | 0-15 |
| Punching Device | 1 Unit |
| Roller Stations | About 17 stations; According to the final design |
| Roller material | GCR15 steel, coated with chrome |
| Roller driven type | Chain transmission |
| Control System | PLC (Panasonic) as list in the note |
| Operation type | Touch screen + button |
| Hydraulic system pressure( MPa ) | 25 |
| Hydraulic motor power ( KW ) | 5.5 |
| Main motor power(KW) | 11x2 |
| Shaft Material and DIA | 80 mm, material is 45 # forge steel |
| Cutting Way | Tracking hydraulic mould cutting |
| Electric Source | 380V, 50HZ,3 phase; According to customer’s require |
| Way Of Drive | Chain transmission |
| Dimension(L*W*H) | Forming Section about 9m*0.8m*1.2m |
